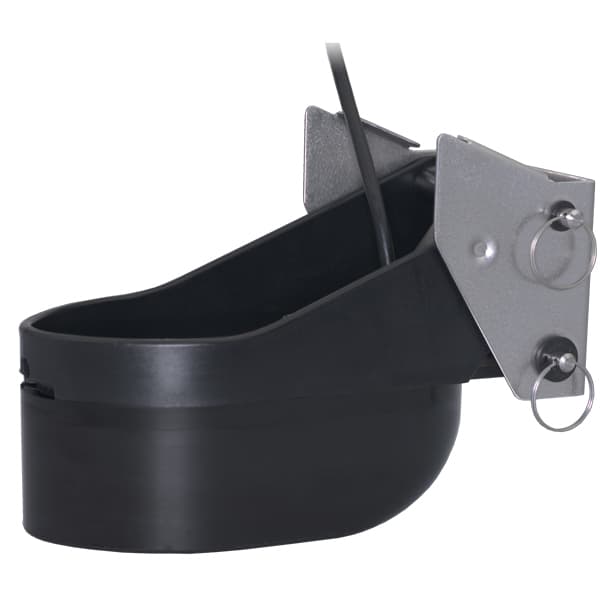

The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar’s “1 kW, 260 family” of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.
FEATURES
- Depth and fast-response water-temperature sensor
- 1 kW
- Dual-frequency element:
- 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600′)
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000′)
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
- Urethane transom transducer for installation on outboard and I/O powered boats
- Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
- Exclusive Xducer ID® technology
SPECIFICATIONS
- Weight: 4 kg (8.9 lb.)
- Recommended Boat Length: 10 m (32′) and up
- Hull Deadrise: Up to 28°
- Transom Angle: 3° to 21°
- Acoustic Window: Urethane
- Speed Performance: Up to 35 MPH
