How to Connect a Battery isolator Switch
We sell a lot of 12V battery isolator switches, both single and dual. We often get asked about additional details for the fitment hereof, so we decided to just give a brief summary of the steps and procedures for it.
Here’s a clear step-by-step guide:
What you’ll need:
- Battery isolator switch (rated for 12V, with enough amps for your system)
- Battery cables (same gauge as your existing positive battery cable)
- Wrench/spanner
- Cable lugs/terminals
Basic Wiring (Single Battery Setup):
- Turn off everything – Make sure ignition and electronics are off.
- Disconnect the battery – Remove the negative (-) terminal first for safety.
- Choose the location – Mount the isolator switch close to the battery, on a solid surface, and accessible.
- Cut the positive (+) cable – The isolator is always installed on the positive line, not the negative.
- Connect to switch:
- Battery side: Attach the cable coming from the battery positive terminal to the switch’s “Input” or “Battery” post.
- Load side: Attach the cable going to the starter/vehicle/fuse box to the switch’s “Output” or “Load” post.
- Reconnect the negative terminal to the battery.
- Test – Turn the switch ON → power flows normally. Switch OFF → everything cuts out.
For Dual Battery Systems (Jetskies, boats, Caravans, 4x4s):

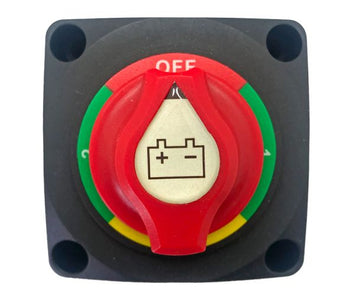

- Use a 1-2-BOTH-OFF isolator switch:
- Battery 1 → Starter battery.
- Battery 2 → Auxiliary/house battery.
-
Switch lets you choose which battery to use, or both combined.
- Wire each battery’s positive cable to its respective switch post, then the common output to your load/starter.
⚠️ Safety Tips:
- Always fuse the line close to the battery.
- Use the same gauge cable as the original battery cable (usually 4–0 AWG for starters, lighter for auxiliaries).
- Don’t install it on the negative side unless specifically designed for that.
